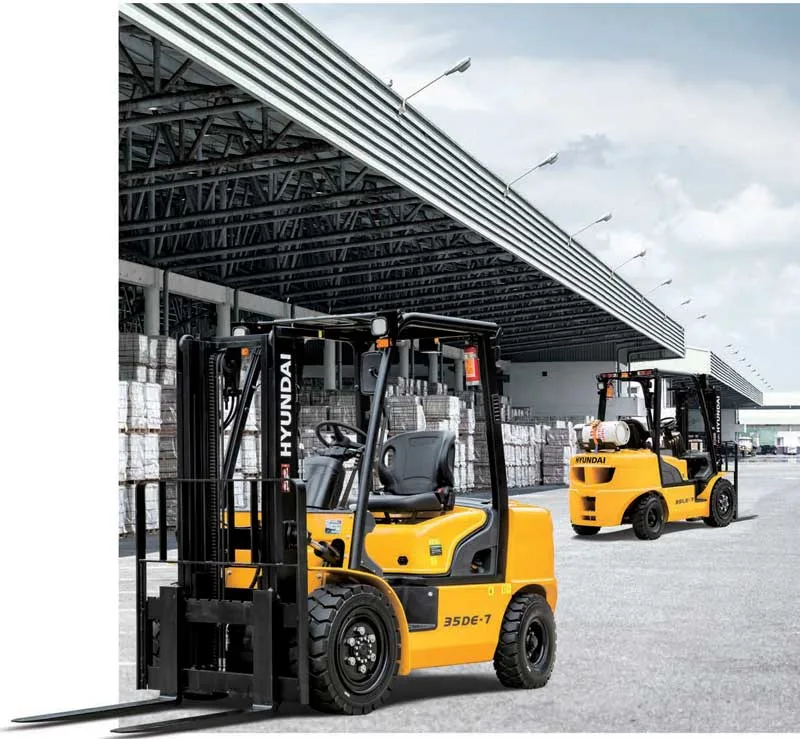

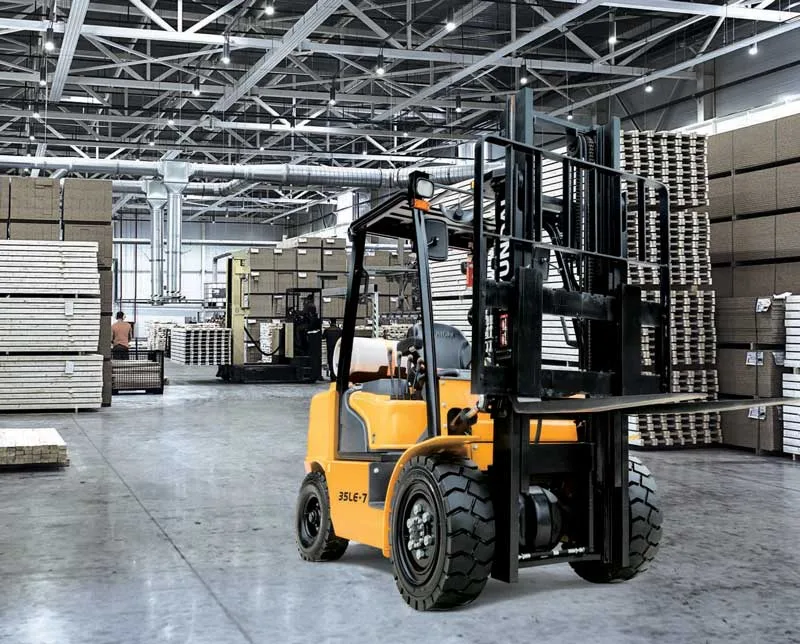

35DE/LE-7
PRODUCT FEATURES
OVERVIEW
PERFORMANCE UP
- Dramatic TCO saving– Fuel efficiency increased by 12%, Lift performance improved by 34%
- Cooling performance improved by 10%– Reliability and durability of power train improved
- Engines from Mitsubishi and Nissan with confirmed capability, durability, and cost– effectiveness in the markets
- Transaxle with capability and durability applicable to heavy-duty operating environments
- Fully hydraulic steering system characterized by easy operation and agile, precise response
SAFETY UP
- LED working lamp guaranteeing clear field of vision during operation indoors and at night
- Operator Position Sensing System (OPSS)–Limiting driving, lifting, and tilting Option
- Ensuring a wide rear field of view– Panorama, RH and LH side mirrors applied by default
- Fork safety feature–Maintaining safety in case of rupture of mast hydraulic line during operation
- Rear grip bar & horn guaranteeing
convenience and safety of driving during backward movement Option
0
%
Fuel efficiency
(Dissel model only)
(Dissel model only)
Max.
0
%
Lifting performance
(Dissel model only)
(Dissel model only)
0
%
Cooling performance
(Dissel model only)
(Dissel model only)
CONVENIENCE UP
- Cockpit design by applying ergonomic
design providing consistent comfort - MCV lever with deck-mounted structure to minimize movement of the driver’s arms
- Hood insulation reducing noise and heat introduced into the cockpit
- Grammer full-suspension deluxe seat including cushion-height adjustment function Option
- Standard tile cylinder cover for keeping the leg room clean, preventing the inflow of dust into the cockpit during cabin mounting
- Polyurethane floor mat reducing vibration and noise to the operator
SERVICE UP
- Side cover and floor plate with tool-less structure to reduce operating hours
- Mission controller and filter mounted
on top of transmission - Plastic sub-bonnet configuration exclusive for radiator maintenance
- Fuse box in automobile style arranged on the front of the dashboard considering the frequent maintenance jobs
- Configuring the rear cover by default for preventing the inflow of foreign substances into the bottom of the engine radiator
- LPG balance alarm system by making use of the pressure difference inside the tank Option
ENVIROMENT FRIENDLY
GREAT PRODUCTIVITY, DURABILITY
PERFORMANCE
Low fuel consumption
as well as high durability!
Try excellent cost-effectiveness
unique to 35DE/LE-7

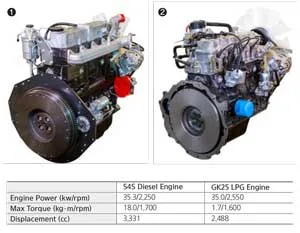

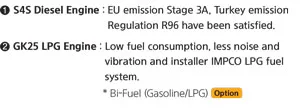

Engine qualified in terms of reliability and cost-effectiveness in the markets
S4S Engine & GK25 Engine are the main stream engines chosen by a number of forklift truck makers leading the forklift truck markets and are products qualified in terms of reliability and cost-effectiveness as well as serviceability

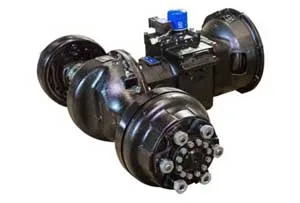

Transaxle with high durability and
environmental adaptability
High capacity clutch pack and torque converter with high torque conversion efficiency is applied to the transmission of power shift mode of single gears forward and backward to perform successfully the heavy-duty operation with push mode and driving on poor roads. Axle applied with technologies of TCM demonstrates high durability and braking power and employs shoe brake with low maintenance cost.
TCO saving – Higher fuel efficiency
Applying engine in a size sufficient for flexible operation in case of variation of loads with top power and displacement among the same class and optimized design for mast operation speed improves the fuel efficiency of the diesel-engine forklift truck up to 10%; thus dramatically improving TCO
Fuel efficiency
(Dissel model only)
(Dissel model only)
0
%
Engine qualified in terms of reliability and cost-effectiveness in the markets S4S Engine & GK25 Engine are the main stream engines chosen by a number of forklift truck makers leading the forklift truck markets and are products qualified in terms of reliability and cost-effectiveness as well as serviceability
