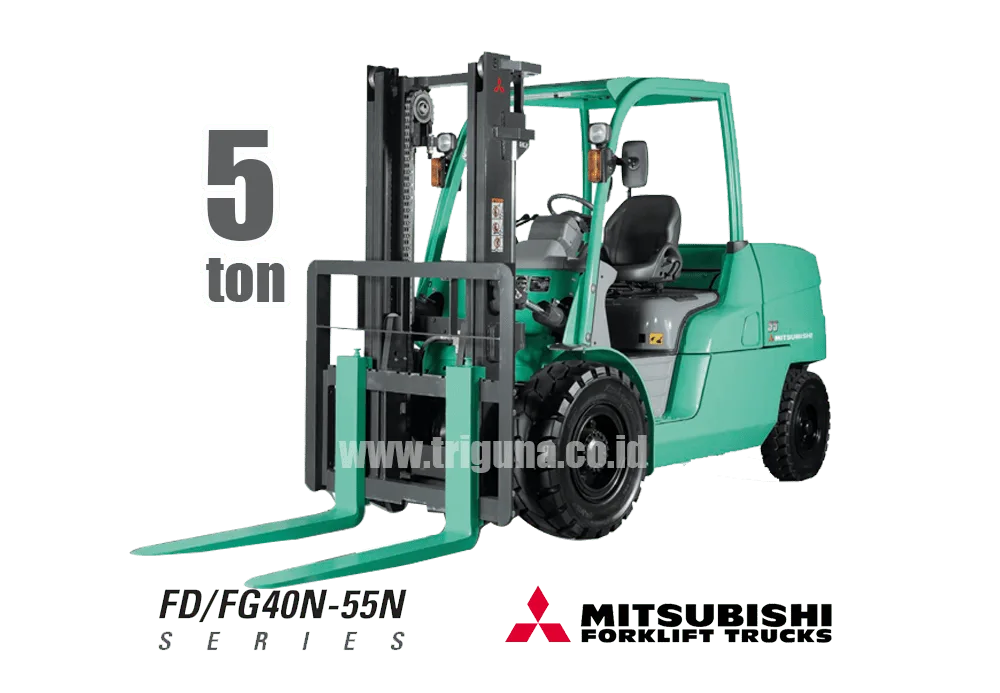

Forklift Mitsubishi 5 ton

Spesifikasi Forklift

Brand / Model Mitsubishi FD50N
Engine Model S6S
Load Capacity 5 ton / 5,000 kg
Load Center 500 mm
Overall Width 1,460 mm
Turning Radius 2,890 mm
Length to Fork Face 3,310 mm
In Stock

Deskripsi

Spesifikasi Forklift Mitsubishi Kap. 1 - 3.5
Main Specifications
Model Engine Model Load Capacity (kg) Load Center (mm) Overall Width A(mm) Turning Rasius (outside) B (mm) Overhead Guard Height C (mm) Overall Length D (mm)
FD40N
FG40N
S6S
TB45
4,000 500 1,415 2,580 2,250 4,220
FD45N
FG45N
S6S
TB45
4,500 500 1,460 2,730 2,250 4,350
FD50N
FG50N
S6S
TB45
5,000 500 1,460 2,890 2,250 4,530
FD55N
FG55N
S6S
TB45
5,500 500 1,460 2,940 2,250 4,580

Engine Specications

Model
S6S
Diesel
TB45
Gasoline
Displacement (cc) 4,996 4,500
Max. Rated Power/rpm to DIN 70020 Kw/rpm 57.5/2300 74/2300
Max. Rated Torque/rpm to DIN 70020 Nm/rpm 260/1700 280/1200
Max. Rated Power/rpm to DIN 70020 Kw/rpm 57.5/2300 74/2300
Max. Rated Torque/rpm to DIN 70020 Nm/rpm 260/1700 280/1200

Forklift Mitsubishi FD50N

Forklift Mitsubishi dengan kapasitas angkat beban max 5 ton

PT. Triguna Karya Nusantara menyediakan layanan terbaik untuk penyediaan Forklift Mitsubishi 5 ton, baik untuk Support service, Spare Part Forklift Mitsubishi Original

Informasi Tambahan

Brand / Model Forklift

Mitsubishi FD50N

Brands

Mitsubishi
