Deskripsi

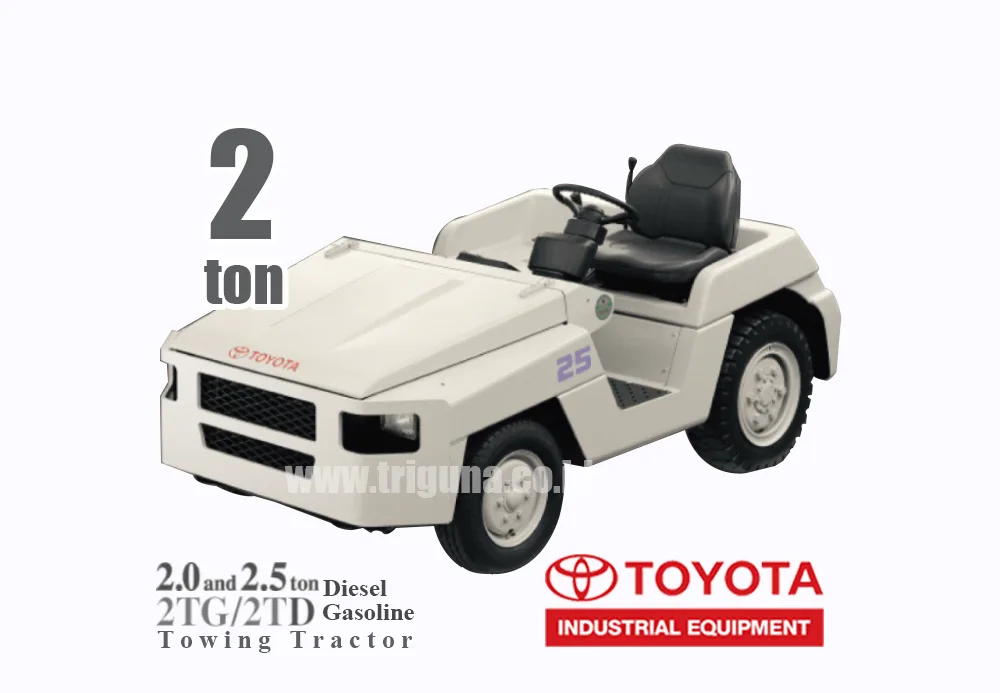

| Model | 2TG20 |
2TG25 |
||
|---|---|---|---|---|
| Engine Model | 1DZ-II, ( 2Z ) 4Y |
1DZ-II, ( 2Z ) 4Y |
||
| Maximum Drawbar Pull | kg N |
2.000 19.500 |
2.500 24.500 |
|
| Gradeability* | % (tan θ) | 46 | 46 | |
| Overall Width | ( A ) | mm | 1.445 | 1.445 |
| Turning Radius (Outside) | ( B ) | mm | 3.050 ( 3.200 ) | 3.050 ( 3.200 ) |
| Overall Height | ( C ) | mm | 1.930 | 1.930 |
| Overall Length | ( D ) | mm | 3.020 ( 1.130 ) | 3.020 ( 1.130 ) |
| Model | |||
|---|---|---|---|
| Displacement (cc) | cc | 2,486 | 3,469 |
| Rated Power/r.p.m. (kW) | kW JIS ps |
40.5/2,400 54 /2,400 |
48.5/2,200 66 /2,200 |
| Rated Torque/r.p.m. | N-m JIS kgfm |
167 /1,600 17/1,600 |
216 /1,600 22/1,600 |
| Model | ||
|---|---|---|
| Displacement (cc) | cc | 2,237 |
| Rated Power/r.p.m. (kW) | kW JIS ps |
39.7 /2,400 54 /2,400 |
| Rated Torque/r.p.m. | N-m JIS kgfm |
162 /1,800 16.5/1,800 |
